Harsh Environment Assemblies

  • UK Made
    • Man
    Leader Optec

    Our Harsh Environment Assemblies are engineered for applications exposed to moisture, dust, vibration, extreme temperatures, and frequent mating cycles.Using high-performance components and robust manufacturing processes, they are designed to deliver reliable, long-lasting performance in demanding industrial and outdoor environments.

    Request a Quote

    Harsh Environment Assemblies


    So that we can provide you with an accurate quote, please complete the fields below or call us on +44(0)1745 586600

    Fibre Mode
    Fibre Count

    For Fibre Counts greater than 24, please visit our High Fibre Count page under Pre-Terminated Assemblies.

    Connector End A

    If you're unsure what connector you need, please discuss with out sales team.

    Connector End B

    Please note that if you require 16F or higher in an S-Line breakout, then Uniboot Connectors must be selected. Please refer to our Breakout Options document under downloads.

    Reels

    Please select the style of drum you require. A suitable size will be quoted for you. If you require any drum accessories, please comment at the end.

    If there are any other information/specifications that you would like to add, please do so here

    Preferred method of contact:
    50%
    Specifications
    Fibre Mode:

    Single-mode, OM1, OM2, OM3, OM4, OM5.

    Fibre Count:

    2, 4, 8, 12, 24 - Connector dependent.

    Higher fibre counts available upon request.

    Connector Options:
    • (IP9) SC Simplex, SN, MPO,
    • (IP16) LC Duplex, SC, SN, MPO,
    • (Amphenol Eurolens) Expanded beam in 2 and 4 Channel.
    • Other connectors available upon request
    Cable Length:

    Standard length measurement is from breakout to breakout.

    Key Features
    • Rugged Mil-Tac outdoor cable
    • Mil spec or IP rated connectors

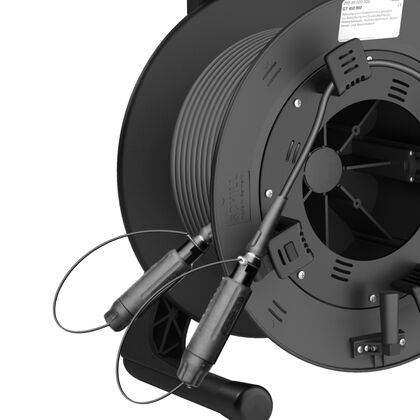

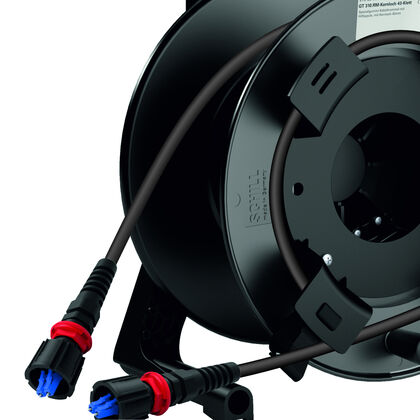

    • Can be supplied on re-deployable reels
    • 2 - 24 Fibres on all modes.
    • UK manufacture.
    Benefits
    • Suitable for rugged outdoor applications.
    • IP67 or IP68 rating (dependant on connector choice).
    • Supplied on a choice of reels and drums.
    • Ideal for re-deployable use.
    • Custom made & fast turnaround.
    • Evaluation and repair service available.
    Cable Construction
    • PUR outer jacket
    • Additional Kevlar for increased durability
    Breakout Styles
    • If the number of fibres exceed the connector fibre count, a breakout will be used to add more connectors.
    • S-Line 14mm diameter with 12x 2mm tails.
    • M-Line 28mm diameter with 24x 2mm tails.
    • Tail lengths from 0.3m to 2.5m.
    Protection Options

    Protection options are not usually required but may be possible if needed.

    Non-Staggered tails:

    • Braided sleeve with pulling eye – 50N tensile force.
    • PVC Sleeve with pulling eye – 30N tensile force.

    Staggered tails:

    • Braided sleeve with pulling eye – 50N tensile force.
    • PVC sleeve with pulling eye – 30N tensile force.
    • Clear protection tube (28mm widest point) – 400N tensile force, 400N/100²mm crush.
    • Reinforced protection tube (35mm widest point) – 400N tensile force, 1000N/100²mm crush.
    Applications

    Depending on the connectors and cable chosen, these assemblies are suited to the following applications:

    • Military
    • Broadcast
    • Marine
    • Energy

    Need some help?

    Send us a message or contact our team on +44(0)1745 586600 and we will be happy to talk through your requirements.
